Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer.

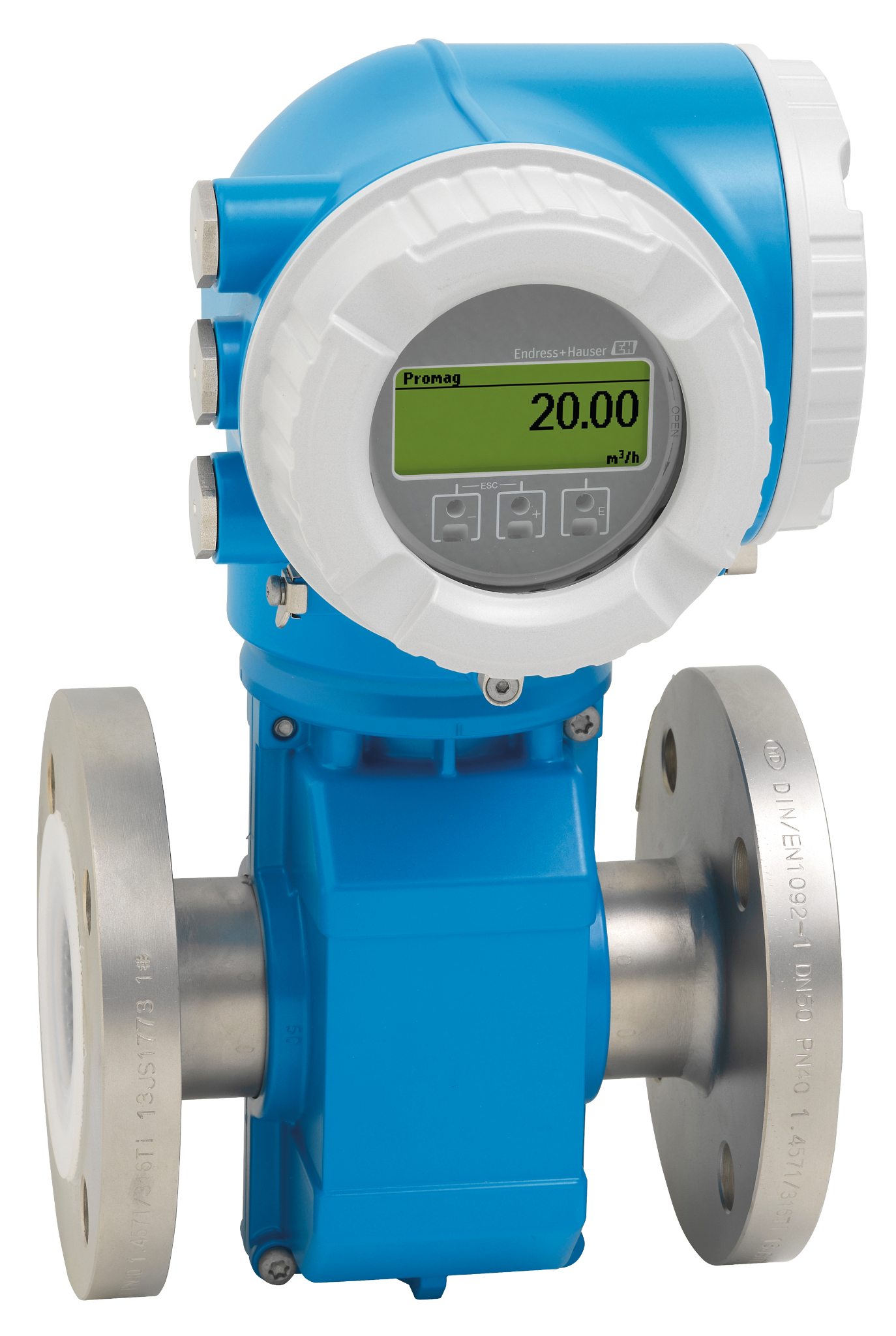

An electromagnetic mag flow meter for high temperature process applications. It has easily accessible compact transmitter.
Predecessor model: Promag 50P, Promag 51P, Promag 53P, Promag 50E, Promag 53E
Max. measurement
error
Volume flow (standard): ±0.5 % o.r.± 1 mm/s
(0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s
(0.08 in/s)
Measuring range
4 dm³/min to 9600 m³/h (1 gal/min to 44,000
gal/min)
Medium
temperature range
Liner material PFA: –20 to +150 °C (–4 to +302
°F)
Liner material PFA high-temperature: –20 to
+180 °C (–4 to +356 °F)
Liner material PTFE: –40 to +130 °C (–40 to
+266 °F)
Max. process
pressure
PN 40, Class 300, 20K
Wetted materials
Liner: PFA; PTFE
Electrodes: 1.4435 (F316L); Alloy C22, 2.4602 (UNS
N06022); Tantalum; Platinum; Titanium

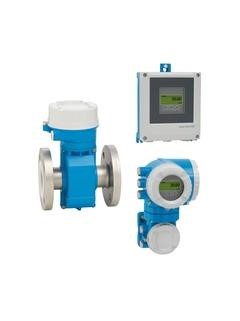

An electromagnetic mag flow meter for high temperature process applications. It has up to 4 I/Os along with remote version.
Predecessor model: Promag 50P, Promag 51P, Promag 53P, Promag 50E, Promag 53E
Max. measurement
error
Volume flow (standard): ±0.5 % o.r.± 1 mm/s
(0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s
(0.08 in/s)
Measuring range
4 dm³/min to 9600 m³/h (1 gal/min to 44,000
gal/min)
Medium
temperature range
Liner material PFA: –20 to +150 °C (–4 to +302
°F)
Liner material PFA high-temperature: –20 to
+180 °C (–4 to +356 °F)
Liner material PTFE: –40 to +130 °C (–40 to
+266 °F)
Max. process
pressure
PN 40, Class 300, 20K
Wetted materials
Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602
(UNS N06022); Tantalum; Platinum;
Titanium; Duplex 1.4462 (UNS S31803)

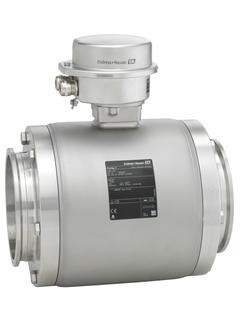

Specialized flowmeter for hygienic applications Comes with an ultra-compact transmitter.
Predecessor model: Promag 50H, Promag 53H
Max. measurement
error
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s
(0.04 in/s)
Volume flow (option) ±0.2 % o.r. ± 2 mm/s
(0.08 in/s)
Measuring range
0.06 dm³/min to 600 m³/h (0.015 to 2650
gal/min)
Medium
temperature range
–20 to +150 °C (–4 to +302 °F)
Max. process
pressure
PN 40, Class 150, 20K
Wetted materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602
(UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404
(F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez),
aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435
(316L); Alloy C22, 2.4602 (UNS N06022); tantalum

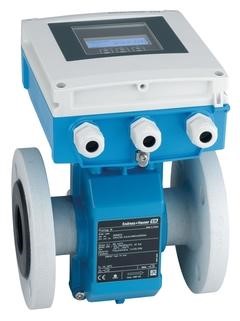

This standard versatile electromagnetic flow meter for water and wastewater process industry.
Predecessor model: Promag 50W, Promag 53W, Promag 51W, Proline Promag L 400 / 5L4C, 5W4B
Max. measurement
error
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s
(0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s
(0.08 in/s), Flat Spec
Measuring range
0.5 m3/h to 263,000 m3/h (2.5gal/min to 1665
Mgal/d)
Medium
temperature range
Liner material hard rubber: 0 to +80 °C (+32
to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4
to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194
°F)
Max. process
pressure
PN 40, Class 300, 20K
Wetted materials
Liner material hard rubber: 0 to +80 °C (+32
to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4
to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194
°F)
Electrodes: 1.4435 (316L); Alloy C22, 2.4602
(UNS N06022); Tantalum

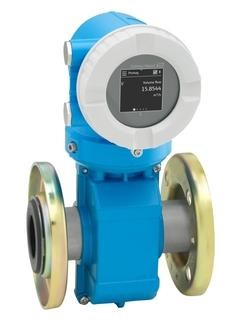

Easy-to-use flow meter for basic water & wastewater process application.
Predecessor model: Promag 10W, Promag 10L
Max. measurement
error
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s
(0.04 in/s)
Measuring range
0.5 m3/h to 263,000 m3/h (2.5gal/min to 1665
Mgal/d)
Medium
temperature range
Liner material hard rubber: 0 to +80 °C (+32
to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4
to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to
+160°F)
Max. process
pressure
PN 40, Class 300, 20K
Wetted materials
Liner material hard rubber: 0 to +80 °C (+32
to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4
to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +160
°F)
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS
N06022)

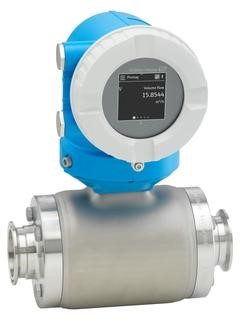

Easy-to-use flow meter for basic hygienic process applications.
Predecessor model: Promag 10H
Max. measurement
error
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s
(0.04 in/s)
Measuring range
0.06 dm³/min to 600 m³/h (0.015 to 2650
gal/min)
Medium temperature range
–20 to +150 °C (–4 to +302 °F)
Max. process
pressure
PN 40, Class 150, 20K
Wetted materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22
Process Connections: stainless steel, 1.4404
(F316L); PVDF; PVC adhesive sleeve
Seals: aseptic molded seal (EPDM, FKM,
silicone)

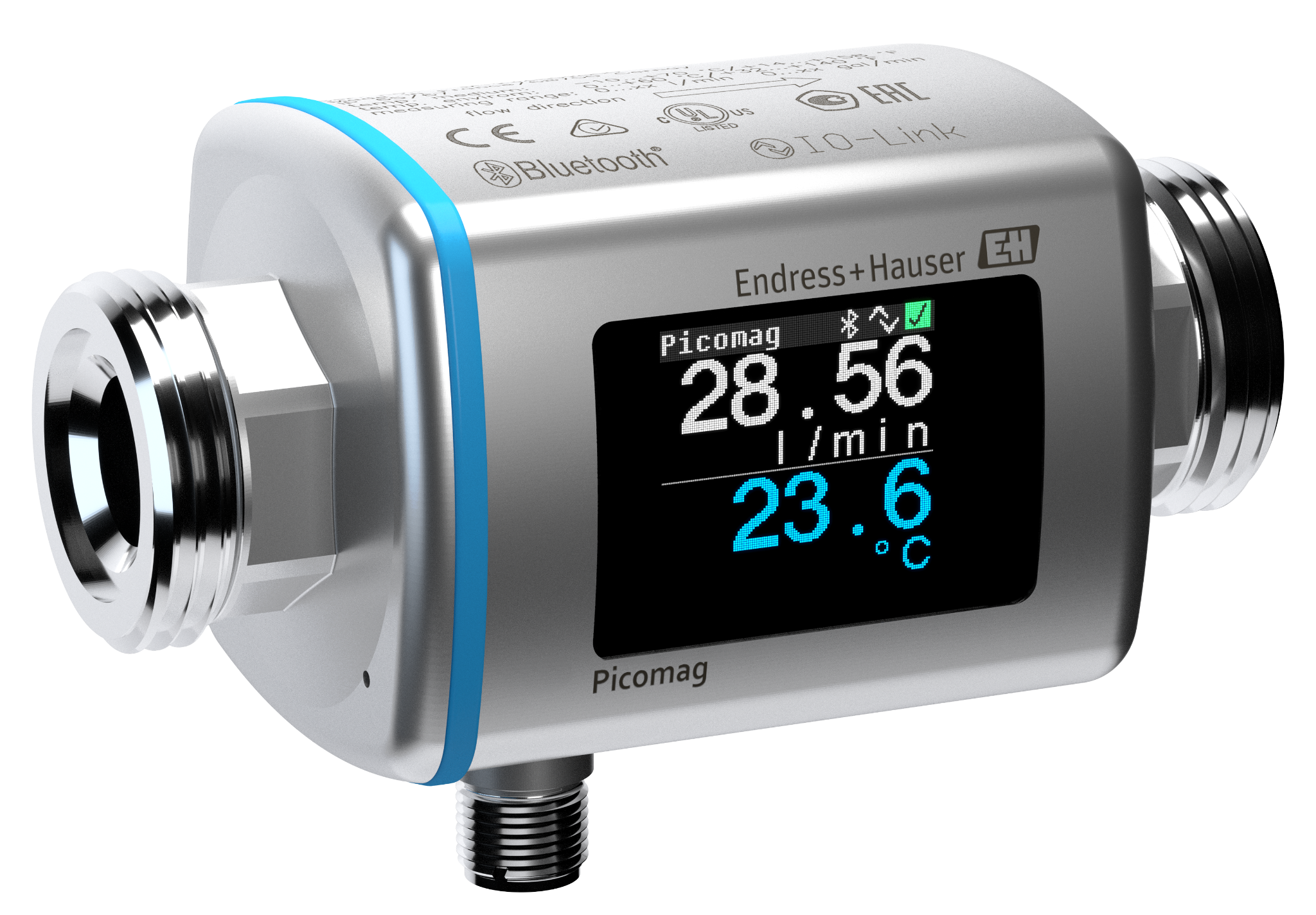

Convenient solution with smart technology for utilities – convenient, intuitive, multivariable.
Max. measurement
error
Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
Measuring range
up to 750 l/min
Medium
temperature range
-10 to 70°C (+14 to +158 °F)
Permissible short-term temperature, maximum
one hour:
85 °C (185 °F)
Repetition after 4 hours at the earliest
Max. process
pressure
16 bar
Wetted materials
PEEK, Stainless Steel, FKM, EPDM
Electrodes: 1.4404/316L

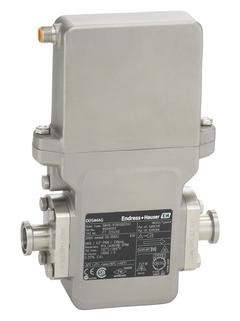

Hygienic designed flowmeter for highest repeatability and it also has ultra-compact sensor
Predecessor model: Dosimag DDA
Max.
measurement error
±0.25 % o.r. ± 1 to 4 m/s (3.3
to 13 ft/s)
±0.5 % o.r. ± 1 mm/s (0.04 in/s)
±5 % o.r.
Measuring
range
0.14 to 1.66 l/s (0.035 to 0.44
gal/s)
Medium
temperature range
Seal material EPDM: –20 to +130
°C (–4 to +266 °F)
Seal material Silicone: –20 to
+130 °C (–4 to +266 °F)
Seal material Viton: 0 to +150
°C (+32 to +302 °F)
Max.
process pressure
PN 16
Wetted
materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy
C22, 2.4602 (UNS N06022), Tantalum,
Platinum
Faraday’s law of induction states that a metal rod moving in a magnetic field induces electrical voltage. This dynamo principle also governs the way electromagnetic flowmeters work.
As soon as the electrically charged particles of a fluid cross the artificial magnetic field generated by two field coils, an electric voltage is induced. This voltage, tapped by two measuring electrodes, is directly proportional to the velocity of flow and thus to the flow volume.
The magnetic field is generated by a pulsed direct current with alternating polarity. This ensures a stable zero point and makes the flow measurement insensitive to multiphase or inhomogeneous liquids, as well as low conductivity.
