Industrial Temperature Sensors

Modular industrial thermometers for reliable and accurate temperature measurement for a variety of industrial applications

The flexible configuration of our industrial thermometers includes different sensor designs, thermowells, connection housings and the complete portfolio of temperature transmitters. Our highly adaptable products offer an unrivalled variety and the best possible fit for your applications in industrial processes. Many years of experience and our broad application know-how ensure that our industrial temperature sensors meet all customer needs.

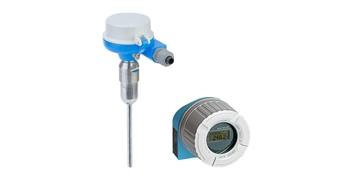

iTHERM ModuLine TM131

iTHERM ModuLine TM131

Trend-putting, highly modular and intrinsically secure RTD or TC thermometer – for a wide range of industrial applications.

Accuracy:
Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2

Response time:
fastest response time with thermowell t90 starting at below 10 s
depending on configuration

Max. process pressure (static):
depending on the configuration up to 100 bars

Operating temperature range:
PT100 TF StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 QuickSensTF:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
(1,112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Typ K:
max. 1,100 °C
(max. 2,012 °F)
Typ J:
max. 800 °C
(max. 1,472 °F)
Typ N:
max. 1,100 °C
(max. 2,012 °F)

Max. immersion length on request:
up to 4,500.00 mm (177'')
Contact Now

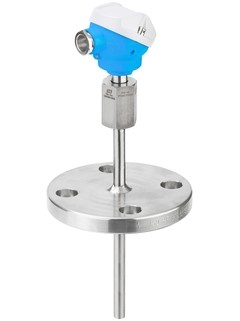

iTHERM ModuLine TM121

iTHERM ModuLine TM121

A thermometer featuring an RTD or TC insert and a thermowell made of pipe material.

Accuracy:
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class standard acc. to ASTM E230
Class 2 acc. to IEC 60584-2

Response time:
t90 around 100 s
depending on configuration

Max. process pressure (static):
depending on the configuration

Operating temperature range:
Basic PT100 TF:
-50 °C …200 °C
(-58 °F …392 °F)
Typ K:
max. 1,100 °C
(max. 2,012 °F)

Max. immersion length on request:
up to 1,000.00 mm (39'')
Contact Now

Applications

Our complete range of industrial thermometers is used both in core processes of Power & Energy, Chemical, Oil & Gas and other industries, as well as in peripheral processes such as Water & Wastewater or steam.

  • Temperature control of production processes and reactors
  • Temperature monitoring in industrial processes
  • Temperature measurement in fluids, gases or bulk material
  • Use in reactors, piping, heat exchangers, tanks, containers

Benefits

  • Most complete industrial temperature sensor portfolio for industrial applications
  • Modular design ensures flexible product selection and the best solution for every application
  • Selection of communication protocols to suit any type of integration, e.g. Profinet, Profibus, Foundation Fieldbus, HART
  • Different sensor designs to fit the individual application requirements:
    • iTHERM QuickSens: fastest response times for optimum process control
    • iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety
  • Global approvals for use in hazardous areas, e.g. SIL, ATEX, IEC, INMETRO, CSA, NEPSI
